Geoengineering - Climate Change Mitigation

Design Desk Inc.

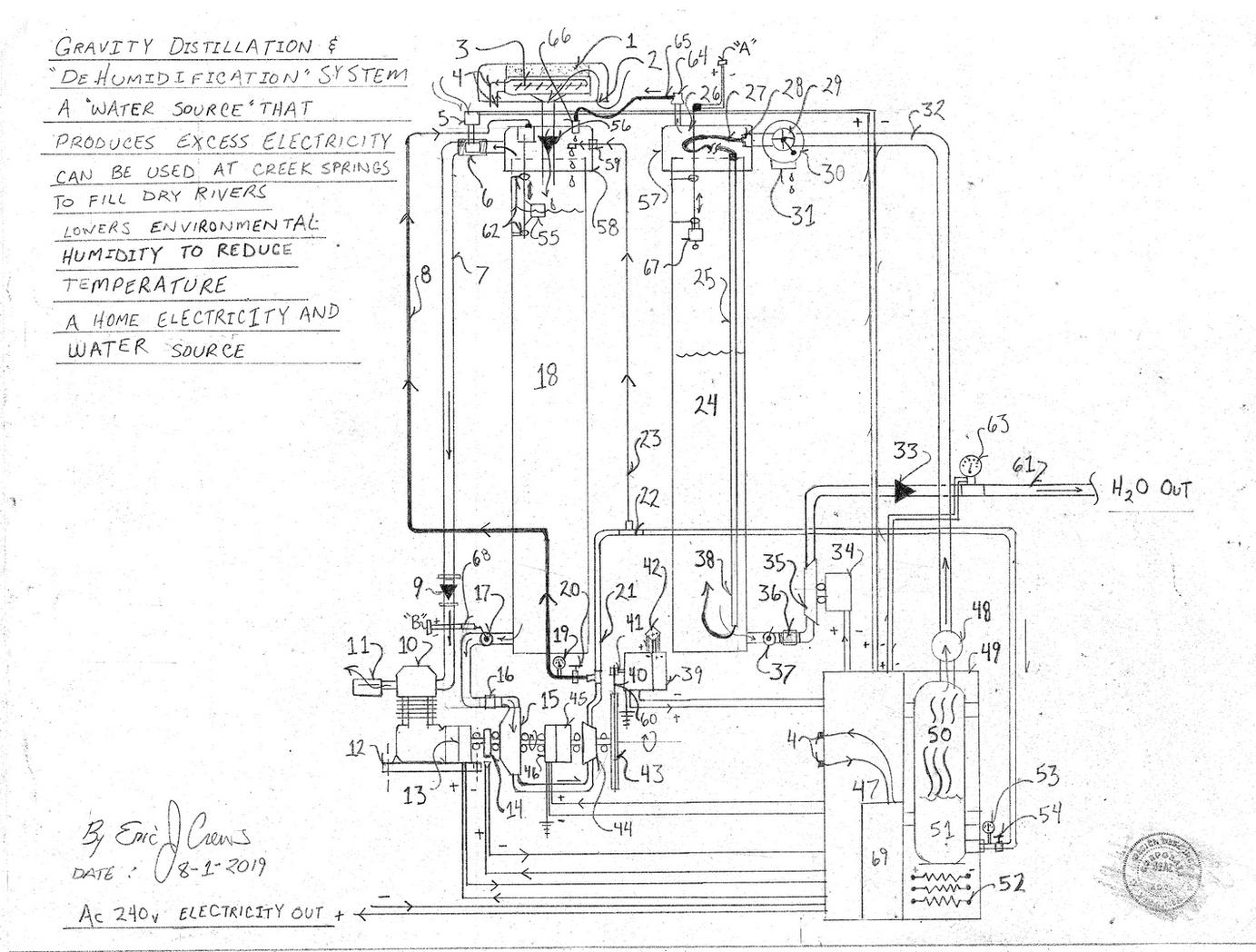

Gravity Distillation De-humidification System

(copyright cc creative commons "open source" - "free to use")


The design is an "add on" design to power existing "Utility" scale power plants via gravity driven steam production.


The system replaces fossil fuels for existing coal, natural gas, or the Uranium used to heat water for Nuclear power plants...


This design solves the "Alternative Energy Storage problem for the Utility "Grid" application as it is an "Active" energy producer using gravity and fluid "weight" superior to Solar and Wind electrical conversion systems.


The design is a "zero emission" / "free energy system!".

The following system acts as a "water source" for use in arid climates. The design system also then produces excess electricity to pump the water. The system then of scalable nature to accommodate industrial agricultural installations if used for oceanic distillation using gravity for energy to "de-salt" the water. The design may be small for use for remote application (live stock water), or in a domicile. The design can "re-fill" dry water wells!
































The design then being a fuel less water harvester / heat source, can elongate the growing season if used in greenhouse applications as a power source.  In places where there is no greenhouse available the water can be produced in the winter to refill the water table in the off season.


This design used for aquaculture (fish farming) would then increase the financial resource to then install lots of these type of system to correct the water depletion problem regarding the failing Ogallala Aquifer. This in turn will correct agricultural water availability for farming. (if used for fish farming the out flow water pump, number 34 is then  used for filtration cycle (post water cooling), and with an additional air pump motivated by the electric motor (dual shaft) then be able to oxygenate the pond, bay, marina if union tandem to an air compressor  ... etc...). The design might be able to be fitted to a buoy then assisting in ph balance of the water!!!



Parts List


1.  air intake filter surrounding electric blower fans to increase water production by increased air flow

     across the refrigeration evaporator. The electric fans then also connect to the system electronics

     logic  electronic circuit board


2. screened air intake grid - food grade stainless steel screen


3. refrigeration evaporator - encasement with food grade stainless steel screen - chamber with air flow

    "back flow discharge" port to allow the electric blower fans air pressure to vent to the exterior of the system


4. refrigerant transfer couplings


5. vacuum level sensor  maximum vacuum safety limiter - electric hydrogen safety sensor

     (vacuum purge cycle) - manual vacuum preset level one way valve, required to manually cause

    vacuum within the de-humidification collection tank prior to system "Start". Number 5 also contains

    an environmental temperature sensor to then cause the "freeze prevention cycle", where as the system

    will be caused to run at a temperature that will prevent freezing when outdoor cold temperatures drop

    below 32 degrees F (Fahrenheit).


    The unit also controls the electric motor motivating the refrigeration compressor to then shut the

    refrigeration system down when the condensate tank, number 18, is indication full water level. The unit

    allows for the discharge of water into the de-humidification water tank from remote humidity collection

    system if used for agriculture.


    The unit uses a return water dampener valve that will also retain vacuum

    containing dual electromagnets. The unit then also containing an "all stop" / "shut off" safety fault circuit

    that communicates with the system logic electronics circuit processors to ensure that the unit is operating

    correctly. The vacuum "pre-set" level then greater than the "water weight" with in the "return pipe" above

    the equilibrium water line "to exceed" water return weight 50% as determined by scale (if the water

    above the equilibrium line then is 50 lbs. (pounds)  then the vacuum level is set at negative 100 lbs).


    The unit contains a relative humidity sensor to assist in system optimal performance. The humidity

    sensor also reports to the system logic control electronic circuits.



* Note - Material selection to retain structural integrity in the de-humidification tube is critical to not then

            incur implosion due to high vacuum


6. vacuum coupling


7. vacuum pipe


8.  de-humidification tube full level water pressure feed tube - assist in electric clutch , number 13 control

     keeps the de-humidification tube from over filling - discharges return water to number 18


9. one way vacuum valve


10. pneumatic vacuum pump piston type - the vacuum pump is not required to operate all of the time,

      the system is "carried" (continues to operate),  by the electrical re-introduction circuit

      (ie... the generator powering the electric motor) - * the vacuum pump then equipped with manual

       actuation to causes rotation to produce the initial "pre-set" vacuum level established prior to system start

       via compression of a flat spring ratchet winder to then cause, upon release of the tension in the flat

       spring, the vacuum pump to incur rotation. The electric clutch is not engaged when the

       "pre-start" vacuum level is being attained. The flat spring ratchet tension then able to be incurred by a

        foot pedal depression lever and gear system that when released causes manual vacuum pump actuation.


11. air exhaust filter box


12. vacuum pump mounting plate


13. vacuum pump electric actuated mechanical clutch - causes engagement of the vacuum pump


14. r.p.m. ( revolutions per minute ) sensor - circuit path regulates system speed and electricity re-introduction

      circuit with the produced electricity from the system's main high voltage generator, number 40 through a

      circuit controlled potentiometer / variable resistor, then adjusting the "re-introduction electricity level"

      to the main drive line's electric motor number 46. the circuit is "on" when starting the system.


15. hydraulic impeller


16. pipe coupling


17. water flow valve - solenoid actuation / solenoid positioning - critical ... the length of the flow pipe between

      number 18 and number 15 must be of sufficient length to then allow the falling head weight under high

      vacuum "tilt" the flow cycle so that the speed of the hydraulic pump is attained while the electric

      re-introduction circuit is active. This allows the design to continue to "run". The valve

      contains  "tank drain" position that allows the water to empty via coupler pipe fitting port. The valve is in

      the closed position when filling the water tank.


18. de-humidification water tank ( tube ) 10 to 20 times the diameter of the water return pipe

      number 23 - larger diameter for larger applications, smaller diameter for smaller applications....

      smaller diameter tubes then may require taller structural tube ie... height increase for smaller diameter

      de-humidification water tank and distilled water holding tank... smaller diameter 12" dia. ( diameter)

      water tank tubes may reduce the total cost of instillation to then provide a more affordable alternative.

      A 12" dia. water tube the using a 5/8" outflow pipe diameter and a 1 1/2" return tube dia.  along lines

      of thought like that....


19. water pressure meter dial display


20. shut off water valve manual positioning - contains external hose tap fitting


21. high water pressure water pipe


22.  "T" pipe coupling


23. return "run" cycle water pipe the diameter of the flow pipe then twice the diameter of the water exhaust

      pipe exiting the de-humidification retainer water tube water tank. The "run return flow pipe" , number 23

      and number 18 will be manually filled with water prior to system "start" for correct operation by

      the 90 degree bend in the top of the return pipe at a clean out port. The system is filled with number

      17 in the closed position. ( the system comes with a long pipe brush to clean number 23)


24. distilled water water tank


25. water steam "in flow pipe" may be coupled with refrigeration evaporator to cool the water in the

      distillation tube


26. electric sensor bore electric sensor signal send ( +/-),  connects to internal distilled water water float

      sensor to  - assist in system dormant mode  "until more water is demanded and allows the system

      to "run" to then continue to dehumidify and distill and pump the collected water actuating number 34.

      Sensor connects to the system's control electronics system mapping electronic circuit board

      to "manage" the functions to the system..


27. high temperature steam tube


28. water steam coupling


29. maximum water steam pressure safety valve and electric motor driven steam condensate steam

      pump - contains outlet and return water valve if used for steam production for high voltage "utility"

      scale power plants outlet - steam out.   Return water / steam in post turbine rotating  utility scale

      generator valve coupling. The water out pump number 34 to cooling radiators to return to number

      18 at fitting upon number 59 once the water has cooled.


30 decompression cooling sphere - allows the steam to cool and fill the drip pan


31. sphere exhaust drip pan (may cause the water to be remotely directed away from the system)


32. water steam flow pipe


33. one way water flow valve - dual coupling


34. house water pressure "feed" water pump electric motor sealed gas type electric motor


35. water pump  "wheel"


36. water filter


37. "to house / application" water "shut off" valve manual positioning. The valve
      contains  "tank drain" position that allows the water to empty via coupler pipe fitting port


38.  external tank electrical ground point


39. permanent magnet Magneto Ac (alternating current) electricity generator feeds the field coil / stator of

      the the main high voltage generator (explosion proof sealed gas type - prevents low level ozone

      formation)


40. high voltage Ac electricity generator (explosion proof sealed gas type - prevents low level

      ozone formation)


41. small pulley tandem rotated with the armature's of the main high voltage generator  and the

      armature of the magneto


42. voltage regulator - controls the electrical voltage level directed via wire to the generators field

      coil - may use circuit controlled potentiometer to gradually increase the electricity level to the main

      generator, number 40's field coil. The voltage regulator also containing a circuit breaker to limit

      electricity feed to the generator stator.


43. large pulley also acts as a flywheel contains weights balanced to "sustain" inertia


44. high speed water pump


45. 1:20 ratio gear set - sealed lubrication high side of the ratio gear set "output rotation " tandem rotating

       with the internal pump wheel of the high speed water pump, number 44


46. dual shaft electric motor with armature tandem rotation with the input rotation of the 1:20 ratio gear set.

      The electric motor's other shaft then tandem rotating "union affixed" to the internal hydraulic (water)

       impeller  "wheel" of number 15. (explosion proof sealed gas type electric motor - prevents low

       level ozone)


47. electricity management control system circuit breaker box and system logic electronics control

      boards contains cooling fans "on / off" switches and manual position dial settings for system functions


48. steam chamber pressure regulator and safety valve and electric steam pump (water / steam)

      - contains safety valve vents under excessive water  steam pressure and or containing refrigeration

      evaporator (begins the condensation cycle) location to then cause the steam pipe to then act as a water

      condenser as the pipe itself then is thermally conductive a "cold" pipe that is also thermally and electrically

      insulated.


49. water boiler chamber encasement (also contains pump assembly drive line as an

      "all weather" encasement with locking access door)


50. electric resistance water boiler chamber


51. dehumidified water


52. electric resistor heating elements


53. water pressure meter also electric sensor for information to assist in system safety

      "assist" in the "all stop" safety function  and contains water temperature sensor and temperature display

       upon the dial meter signal then also reports to the logic processing electronic circuit control board.


54. manual water "shut off" valve also an electrically actuated valve used in system "run" mode to then

      open, with timed interval, allowing equal water into the steam chamber vs. water inlet humidity

      collection volume of water. This is an automatic function then actuated by the electronics control board.

      This allows for constant "head weight " of water in the de-humidification tank to continue the cycle ...

      This allows  the generator  to remain in operation. Multi inlet port valve


55. water level float and electric sensor signal  "send" - causes the disengagement of the vacuum

      pumps electric actuated mechanical clutch and controls the refrigeration system actuation. The cap

      mounting coupling also then acting as a valve mount that when the system is in high speed actuation will

      cause water to discharge into the de-humidification holding tank tube.


      The water pressure meter, number 19 then also with reporting to the logic processor can then be able to

      cause force opening of the water gate valve in number 55 valve assembly to allow the decompression of

      the  "run" water line / flow pipe system. the meter number 19 then also acting as a safety sensor / fault

      sensor to prevent the design system from over pressurization.  An "all stop" function safety sensor.


56. one way restriction valve dampeners valve - only opens by high vacuum in the chamber, the one

      way dampener valve then with timed electromagnets (sum of two -"repellent" to "open" the dampener

      plate controlled by timed circuit), to allow short open cycle to release the  water without loosing vacuum.

      The valve uses coil spring expansion to the closed position.


57. distilled water tank tube cap interference fit


58. de-humidification water tank water tube tank cap interference fit


59. return water "run" cycle water pipe coupling


60. pulley drive belt


61. water  "to house" pipe - requires additional final filter - may couple to 54 if used in Utility scale

      steam pressure cycle - stem production system to replace fossil fuels for utility scale electricity production


62. water float mounts guide hoops


63. water "line pressure" water pressure meter


64. distillation water tank "tube" over pressure water "cycle return coupling - allows water steam to

      cycle to the de-humidification for "system clean" cycle to cleanse the de-humidification water tank tube

      with high temperature water to prevent pathogens from forming or growing in the de-humidification

      chamber


65. water transfer steam flex tube - insulated has setting for cold weather "run" cycle allows steam to

      transfer in cold weather mode - valve contains automatic flow path selection switch references

      outdoor temperature from sensor (thermometer) in number 5. The cold weather function the a

      lower discharge of steam than the system clean out cycle.


66. insulated water steam flex hose coupling


67. distillation water tank float and system full sensor assembly causes the system to go "dormant" as a

      mode of function for water production / water collection yet will or may still allow the electricity

      production system to continue to produce electricity to feed electrical current to the domicile


68. electric valve control solenoid


69. electric refrigeration "bay"




* Note - number 4 connects to number 4 via refrigerant connection pipes


* Note - wire bus clips "A" to "A" / "B" to B" plug to the system control electronics to then preform their

             intended function working in association with the logic board control electronic circuits


* Note - ensure correct electrical grounding is attained upon all flow pipes.


* Note - internal system material selection then of food grade stainless steel.




Description


The water "head weight" in the de-humidification collection tank then impales the water impeller , number 15 rotating the mechanical drive line containing the ratio gear set and connected components to cause a "hydraulic draft effect" between the hydraulic pump, number 44 and the preceding hydraulic impeller, number 15.


This causes system acceleration!


The water "head weight" then also counteracting the mechanical resistance encountered within the system's ratio gear set and  return water flow / water pump resistance (if field humidity remotes are used). The water column  "head weight" then also then counteracting the electromagnetic resistance magneto and main high voltage generator. Higher speed and volume of return water is then produced by high chamber

vacuum (within number 18), and with the assistance of the electricity  "re-introduction circuit"  as a  percentile of generated electricity then directed, via wire and control circuit, to the system's electric motor number 46". The remainder of the produced electricity then is applied to the system's other electrical components.


This causes the rotation of the generator assembly producing electricity that is also then able to be directed, via wire, to the system's electric motor to accelerate the total system allowing enough excess electrical current production to then cause the electric refrigeration and distillation system to operate.


The electromagnetic  "pressure" (electricity in the electric motor),  then atop the fluid velocity rate calculated by the compounding rate of rotation due to the "hydraulic draft effect". The refrigeration system then causing the refrigeration evaporator to aid in the condensation of environmental humidity and the distillation system to clean the water to make it safe for consumption (potable water).


The design system contains a vacuum pump that is motivated by the rotation of the drive line

and de-humidification water column "head weight". The falling water then impaling the water impeller

number 15.


The falling surface area of the water within the cylinder then acting as a syringe, increasing vacuum within the

 top of the water tank chamber, number 18.  Number 18's vacuum level to increase the suction upon the return water to the water tank number 18 assisted by the basal vacuum level set, manually incurred prior to system "Start".


Cycling water in this fashion can produce perpetual rotation and any moving fluid causes mild static electricity and may cause electrolysis so care must be taken to electrically ground the system also with a hydrogen sensor in the sensor unit, number 5, to then allow the system to air purge engaging the vacuum pump by electric actuation of the mechanical clutch if excessive hydrogen is detected. The vacuum pump, when engaged, will cause the vacuum pump to pull environmental air through the air intake and chill the air flow condensing the humidity into water droplets filling the water tank.


The system is a clean water, water production plant that is scalable for large agricultural applications that can be applied without large infrastructure project cost involving installing pipe networks thus reducing the cost of installation.


The design then a micro electricity producing "fuel less power plant" that produces distilled water by de-humidification.


*Note - flow system flow pipe, number 8 may then also be made to drive remote air compression impellers

            to increase the humidity intake of the system, via connection hose, with the air flow then driven by

            hydraulic impeller tandem rotating with a blower fan.


* Note - all motors and generators are  sealed gas type - prevents low level ozone formation


* Note - all water pumps and water impellers housings of the  "pump / impeller wheels" are then of stainless

             steel composition as the deign is a high speed flow system. The housings then thermally

             and electrically insulated while being electrically grounded to control static electricity


The pressurized return water, post additional hydraulic drive impeller blower humidity collection system, then increasing the volume of water by increased area then being dehumidified.  The pressurized water  (hydraulic impeller drive pressure ) would then return to it's connection coupling, via return flex water hose, upon the humidification collection water tank, number 18.


The blower fan then would, via air duct, increase the localized humidity surrounding the system intake at number 2. The length of the hose to the remote humidity collection air intake system then may also be made to become water irrigation for agricultural crops to "low cycle" the humidity thus recovering the field evaporation...


Before final human consumption a water quality monitoring system should be used upon the out flow of the system to then check the water especially in industrial regions or where airborne contaminates may cause a hazard. This design should be used in tandem with https://www.designdeskinc.com/air-stratifier.html to then low altitude cycle the water to reduce water thermal atmospheric retention of solar gain heat.


The air stratification system the using the liquefaction of air to produce active forced compression to extract humidity. This method the by "unit of volume" vs. cost of production, causes a higher water yield. The above design system then also as a power source for https://www.designdeskinc.com/oceanic-desalination.html


The design may be incorporated within the following design system;

https://www.designdeskinc.com/agricultural-watering-system.html


For the above system the water head weight then to be of sufficient  weight to then cause the system to operate correctly ... the scale of the system then addressing the performance  dynamic of it's service requirement.


A four person home then currently uses about 150 gallons of water per person per  day. So if scaling for a single family home the approximate water condensate tube ( number 18 ) then would be about 22' - 25' with a diameter of 12". The system then holding about 500 lbs. (pounds) of water weight in the vertical column.


The system vacuum level then determined by material selection of the water / vacuum retainer  tube tanks. The vacuum level then sufficient to cause a suction effect for the high speed return water flow. The electrical electricity power production system then may also operate by cycling the water even when

the de-humidification and distilled water tank are indicating full water level.


The design system then may be connected to a homes fire alarm system to then automatically activate an interior water sprinkler system ( fire suppression system ). Additional water holding tank and electric water pump may be required.


In extremely arid regions the system may use flash boiling the homes grey water water discharge to recover water vapor that has been distilled in a separate unit to then use the grey water in it's own cycle thus reducing the total level of water required...


* Note - The design system can be adapted for use as a micro oceanic distillation system with an additional salt laden water auger water pump driven by electric motor to evacuate the saltwater concentrate from the "flash boil" chamber. The water auger driven by an electric pump and or water flow itself  added to the water heater chamber number 51 with the air discharge from number 10 then directed to a bubble matrix within the water chamber, number 51. The electric actuation saltwater concentrate port valve will contain a water pressure sensor connected to the system's electronics control electronics to control air and water outflow.


Heavy saltwater laden water then to total water evaporation system not to be reintroduced back into to the ocean.


* Note - The steam pressure then may be able to replace coal, natural gas, or Uranium for "Utility" scale

             power production. The produced steam pressure then to motivate steam turbines to rotate generators

             of electricity.  High pressure steam coupling and valve then upon number 29 ie... "to" the "existing"

            "Utility scale" power plant.


            The water steam pressure will then be able to rotate existing steam turbines  connected to "Utility"

             scale High Voltage producing electricity generators. The return steam pressure

             then connecting, via flow pipe, to a one way flow valve upon an additional pipe coupling upon

             number 54 to "re-heat" the water steam before returning to the utility scale steam turbine rotating

             the industrial size generator.


             An additional drive belt  driven ( via pulley ) rotary type piston air compressor may be added to

             the system to inject  filtered pressurized air into the steam chamber water to "bubble" air causing

             increase steam production.


             This is then increasing the total steam outflow pressure to spin existing Utility scale steam turbines

             used for electricity production. The feed pipe "to" the steam chamber, post air compressor, then

             containing a one way flow valve.




(copyright cc creative commons "open source"  "free to use")


*
