Tire Wench

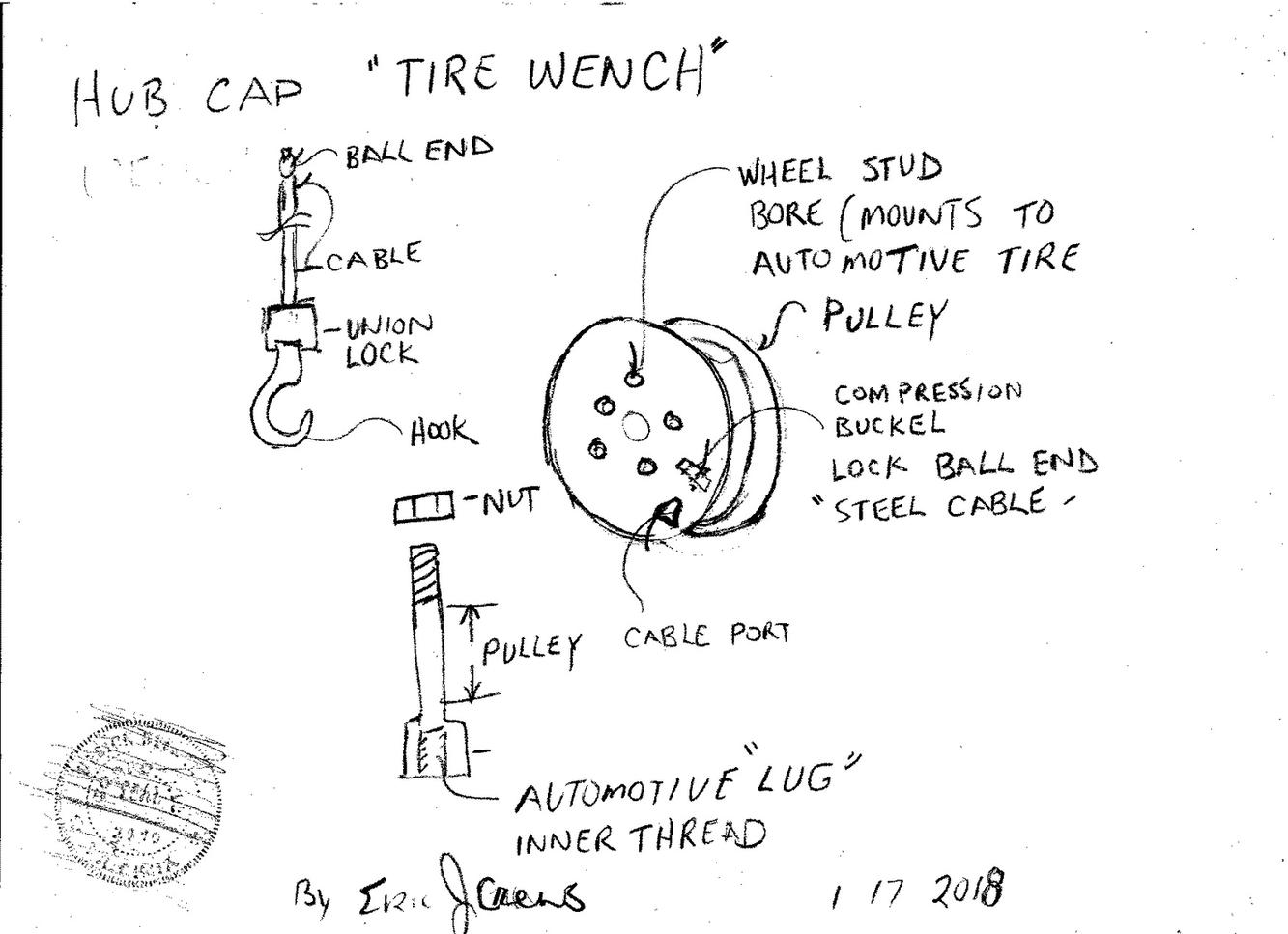

The automotive tire wench then is a pulling device to assist those who become stuck in mud or snow. The design mounts to the lug nuts of the tire and comes with a length of cable with a hook at the end to then cause the tire to reel up the cable pulling the car from it's stuck position...






























The union lock then allows the cable length the operational cable length to change allowing for adjustment to continue the pull ....


The automotive lug then receives the "lug extender" to mount the pulley. The "extender then upon the wheel lug with bolt face exterior to wrench the extender tight. The ball end of the tow cable the is inserted through the cable port and secured by the locking clamp. The tow hook length is then adjusted by the union lock and secured to stable object of sufficient stability ,. The design system comes with lug nut wrench then designed for the function.


The car is then placed in drive or reverse depending upon the situation of how stuck it is...... and slowly is caused the wheels to rotate in a gentile fashion... this causes the pulley to reel the cable and will pull the automobile to become unstuck. Safety glasses and gloves required for the operation also standing clear away from  the cable for safety should the cable break...


The design comes with two tow gauge cables and the system may be used upon two wheels at the same time. The cable then of sufficient length (20' to 50' cables) and the cables may be used in tandem ie... connected together to cause a longer cable as the cable lock also contains a recess for the cable "ball end" to lock into.


Using this system will require post inspection of the ball joints, tie rod ends,, and control arms.... this is to insure that the stress of the system does not damage the automobile... correct usage of the wench is recommended.. slow incline in rotation with very little quick motion... proper alignment when causing the wheel to rotate also important.....


Great caution must be taken finding an anchor.... the cable may have flashing clip on lamps also included with battery charger.The system kit will also contain a "house trailer" securing auger then to be placed as a tow point. The auger will then be with hydraulic piston core to cause deep horizontal penetration of undisturbed earth at the auger's full depth to then give solid stability.. a large "cork screw" that when the hydraulic "jack" is actuated horizontal extenders "spike into the earth past the bore hole.. by upward hinged levers ( when hydraulic jack upon the core shaft is actuated) to then "the levers" extend past the diameter of the auger bore... This will provide solid anchor for the hook end of the system.The top of the auger then with hoop to accept the tow cable hook.....
