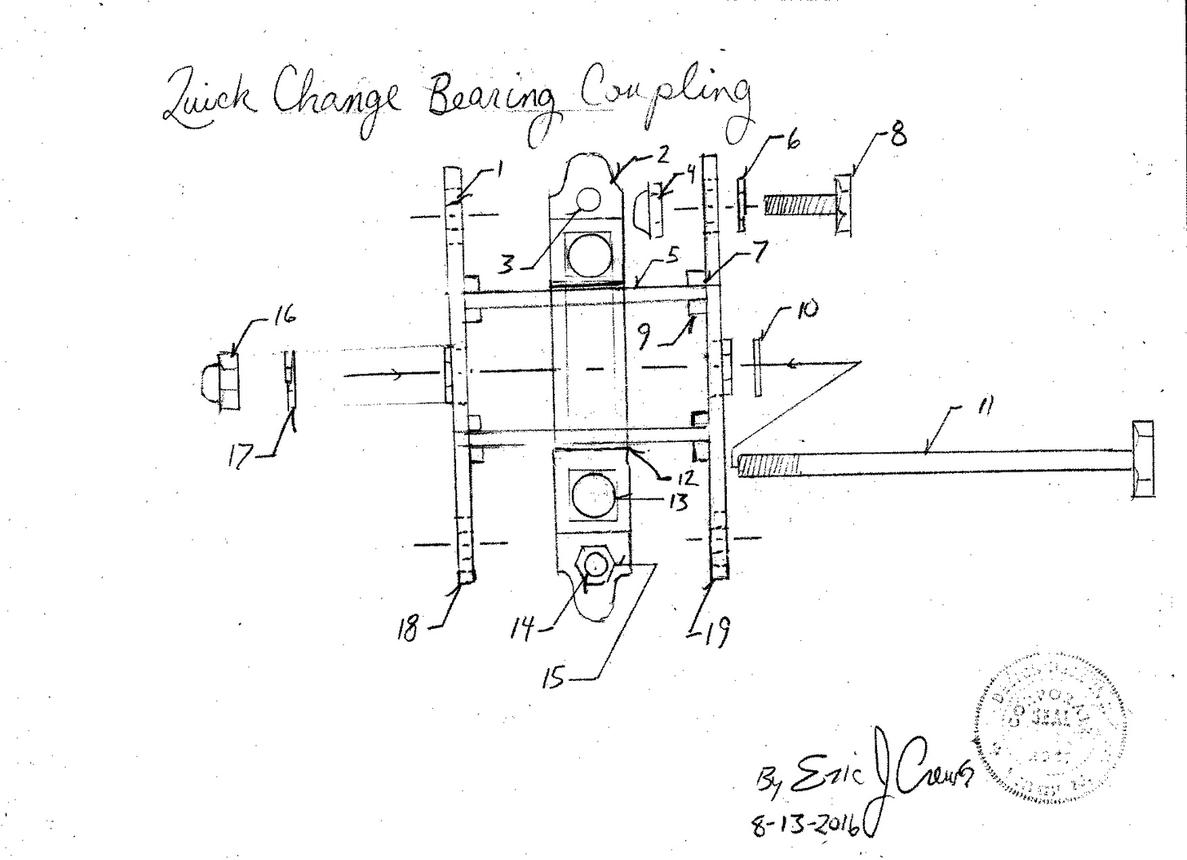

Following the "Quick Change" bearing race is a component that will allow for component exchange without having to remove entire assemblies... making repair a speedy endeavour.
1. thru bore bolt holes upon both numbers 18 and 19 then 3 times about a polar array. ( also bolt hole pattern upon component junction / union mounting plates )
2. sealed bearing bearing cap
3. threaded bore hole
4. lock nut
5. cylindrical "tumbler " ( connecting hollow shaft )
6. lock washer
7. outer machined tumbler locking circular ridge
8. threaded bolt
9. inner machined tumbler locking circular ridge
10. flat washer
11. center threaded bolt
12. interference fit ( the "tumbler" is pressed into the sealed bearing )
13. sealed bearings
14. threaded bore hole
15. bearing cap locking bolt ( threaded bolt )
16. lock nut
17. lock washer
18. bolt plate
19. bolt plate
20. magnetic inlay for hall effect R.P.M. ( revolutions per minute ) sensor
* Note - the bolt plates then union mate and bolt to matching bolt plates, then connecting the assembly components, to cause contiguous drive line assemblies.
