Garden Trench Harvest Assistor System

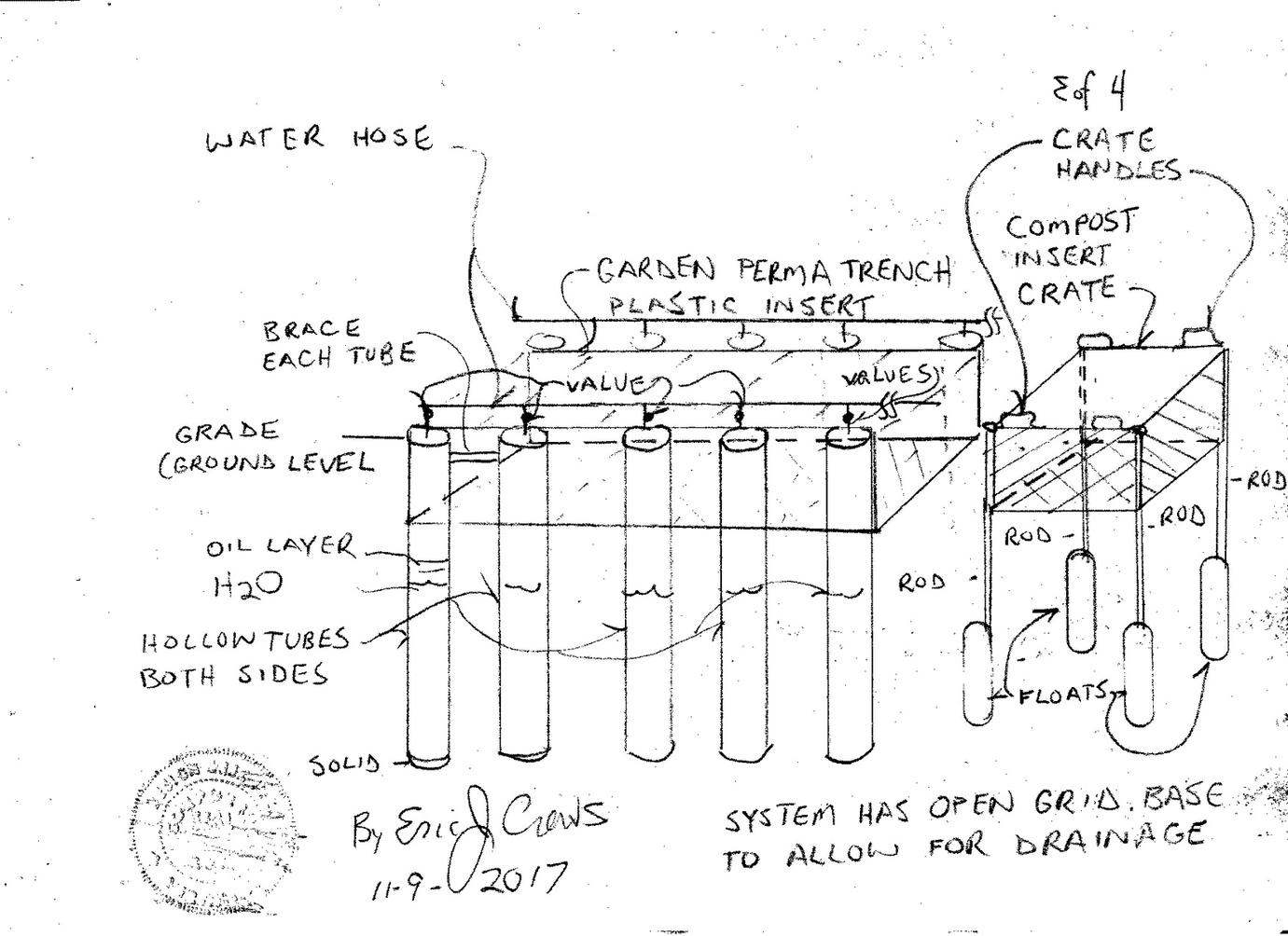

The following design system is intended to reduce the bending and stooping when harvesting certain types of crops. The individual compost crates then also allow for control of the soil as to not allow micro organism to effect the total field as the crates are extractible. The design uses water to float the advanced planter design upward so that the harvesting of the produce is easy.





























The water tube into the vertical tubes then discharges water at the base of the tube allowing for the systems out flow water pump to allow for the "lowering" of the floats within the tubes ... when the water is pumped out the compost crate lowers....


The water tube may also channel hot water to prevent unwanted frost from killing the crop..... then with thermal transference via thermal conductive pipe sections  upon the hose... to then radiate under light weight green house cap..... / tarp etc... The system may also regulate the temperature via cold water through the system to farm in arid or desert climates....


The advanced gardening system will also allow gaseous Nitrogen to then aerate the roots of the crops to increase growth.


The "perma trench" then pair section of two compost crate insert and the last additional tube for onsite water... for direct watering of the plants. The tube volume the receives a liquid plant food per measure... unit of water volume with the valve able to receive a watering wand to water the plants... Plant food is injected by hand held pump....metered syringe..


The lift tubes the contain an oil layer to assist in the float sliding also with the top cap ( above ground to then have a bi directional air inlet air discharge valve ( coil spring dampener)  to be actuated when the float is sinking or rising...


The compost crate then receives a pot liner containing the regulated soil able to then be extracted from the crate via the gate hinge upon the compost crate... ie. one vertical wall of the compost crate will have a hinge system with locking clasp..... this will allow for a cart to load or unload the liner pot... for large applications roller wheels may be installed upon the crate floor to aid in the placement of the liner pot...
