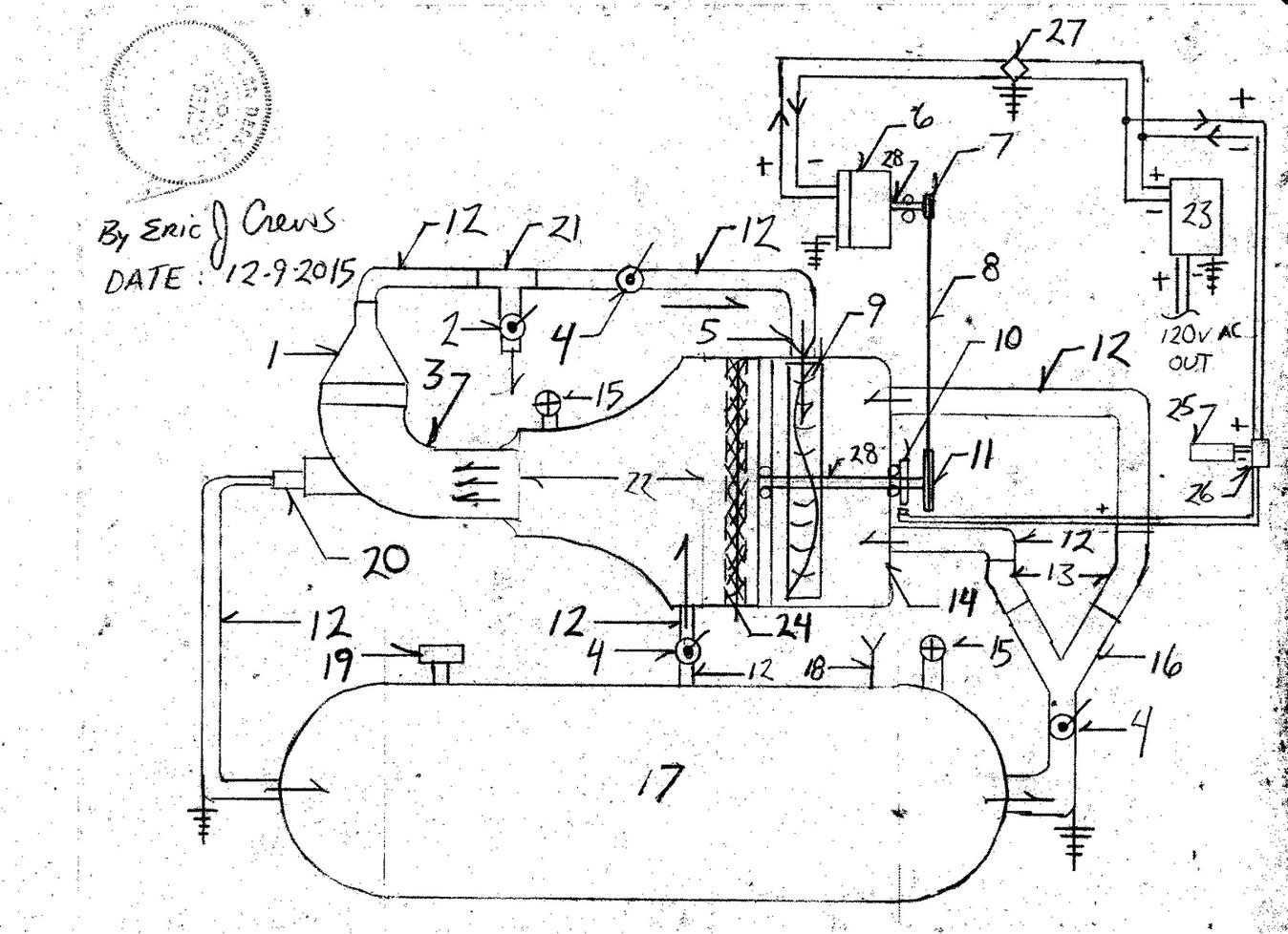

Compound Wheel




























Parts List

1. Funnel
2. Compressor pneumatic pressure purge valve
3. 4" sewer clean out pipe ( PVC )
4. Pneumatic valve
5. Pneumatic restriction "tip" / venturi compression tip "funnel"
6. Dynamo ( generator ) permanent magnetic /  compound stator ( Ac or Dc systems )
    note - the Ac ( alternating current system is for the automotive application and  may also be able to cycle the pressure ie. harvest max pressure safety valve
     exhaust ..and re- circulate the pressure regulated back into the system to then drive electric "active generation" of electricity lunar vehicles
7. Small pulley
8. Drive belt
9. Compound Wheel ( propeller / diameter ) impeller ( circumference )
10. Hall effect R.P.M. ( revolutions per minute )  sensor
11. Large pulley
12. Pneumatic flow tube  2" (PVC )
13. 120 degree bend 2" PVC tube
14. Kitchen metal pot
15. Pneumatic max pressure safety pressure relief valve
16. 2"...."Y" PVC  tube
17. Pneumatic pressure storage tank
18. Pneumatic fill valve one way valve
19. Air pressure gauge
20. Compressor flow system max pressure relief valve / re-pressurized air storage tank
21. "T" union fitting PVC t shape tube
22. Lamp shade made rigid by carbon graphite weave / fiber glass cloth plus epoxy
23. Dc ( direct current ) current to Ac  ( alternating current ) electrical power inverter
24. Fiber glass  plus epoxy resin union seam
25. R.P.M.  rotational rate display
26. Hall effect sensor control circuits
27. Dc voltage regulator
28. Drive shaft

O = required bearing race

* Note - The electricity generating system is then , for automotive applications , feed current to an electric motor connected to transmission and
              drive shaft assembly ( 4WD , AWD OR 2WD ) connected to tires....

* Note - The system has many implementation and can be applied also as a starter system for the sealed pneumatic thrust aero space lifting vessels.

* Note - Also as an addition to this design the "start" exciter flow tube is identical to flow tube system number 17,12,4,12,22 but differs so that the additional flow pipe becomes
             number' s 17,12,4,12,5 then  pneumatic discharge then impaling number 9.

* Note - As an added safety measure the flow tubes will be wrapped with  fiber glass insulation  ( 1 1/2 " ) then   wrapped in spiral fashion with Fiber glass cloth plus
              epoxy resin to the thickness to prevent  ( projectile from flow pipe rupture ) approximately 1/2" of fiber glass cloth plus epoxy resin ( outer pipe shell  ie.  wrap
              full pneumatic system...  ).

              Do allow for pneumatic pressure venting via number 15 when wrapping the outer system "shell".... Additionally a band of carbon graphite  ( thermally cured in enclave )
              around the outer most shell container to prevent projectile of impeller vane should component failure occur. the carbon graphite ring.. will be then placed around the
             circumference of the compound wheel number 9 and secured in place by adhesive.

* Note - Flow tube number 12 into number 9 is angled so that the the emitted air stream is impaling the vanes of the impeller within the less than 45 degree angle produced by the
             bend of vane at 45 degrees off of the wheel . the vane is then about 2" long piece of steel that fits within the wheel rim ( steel wheels only ) and is secured by two
              rivets upon the circumference in
              the groove of the rim..( additionally ...high tensile strength bolt and nut with locking washers  securing the vanes will be required for high capacity / high rate of rotation
              systems ),  and two   welds upon the top of the piece on the outer circumference of the rim and one weld upon the piece ( impeller vane ) in the groove of the rim .
             The impeller vane piece then bent at an angle 135 degrees slightly   curved on one half of the piece to mate correctly with the circle of the rim.. . If using aluminum rims
             then the two bore holes will be required (one for rivets the second for two cables then welded tight about 360 degrees upon each vane piece )  to then thread steel cable
             through the second hole to then be welded to each vane about the circumference  one tac weld in the hole then above the bend the second upon the circumference
              repeated for each vane piece then welds then covered and sealed with epoxy resin to harden a seal. Offset the cable ends at 180 degrees ...opposing...

* Note - Material selection for the advanced pneumatic electric generating system and components in the pneumatic compression cycle will also be made to last long
              periods metal components of stainless steel....and generator  motor cases then of the lightweight carbon graphite laminate composite with epoxy cured in enclave... will
             ensure longevity of the motor system then also being easy to repair and will require minimal repair or maintenance cost. The idea is not to make more money by selling
             products that continue to be a burden upon the customer rather by correct design avoiding planned obsolescence then saving  the public money time and inconvenience.


* Note - Additionally a "start" pneumatic impeller system connected to a drive pulley can be added to the drive belt system or the additional system can then be made to "free" spin
             not having a pulley then advancing the drive belt ( causing more pneumatic pressure then vented to the opposite side of the pulley / sprocket system then advancing the
             generator assembly ) and or the connected to the pulley drive belt system by electromagnetic clutch to allow for variable rotation of the drive pulley. This will allow . The
             said addition will have a flow tube from number 17   then passing a pneumatic valve ( one inlet one exhaust ) then into the pneumatic impeller in the same fashion as the
             compressor / impeller wheel ( as depicted below )  with   the propeller pulling  exterior air through an air filter then ...  venting through a funnel then through  a one way
           valve with  the air pressure  directed  into the pneumatic   pressure storage tank   and the exhaust of the additional " start" impeller then  venting into open air..and or
            through the generator to cool it. The additional   compressor / impeller assembly will then be attached  to a drive pulley advancing the entire   system then only
           being pressurized from the pneumatic   pressure storage  tank for a short   time period... The addition also changes the  dynamics of the system may require    addition
            outer shell thickness increase. The air intake will be coil spring dampened ( suction opens louvers ) . The  intake slots  regulate intake volume  and   have " diffused "   intake
            as to lower intake pressure per square  inch. Upon the additional "start" compressor  / impeller assembly the impeller   then has two pneumatic air flow injection
            tubes..one from the pneumatic pressure storage   tank the second from the re- introduction of compressed velocity post number 22.

* Note - For high capacity / high velocity systems the compressor cases will also be bolted together. with pressure rated gasket ... to allow for component replacement  ie. bearing
             races will in time wear....  ( option electromagnetic field bearings  aero space ...saucer systems)

* Note - The valve systems can be actuated manually or by electrically activated solenoid system then controlled by mapping computer / system circuits to control rate and
             pressure levels and to then cause stable electricity output from main generator number 6.

* Note - Additional high voltage generating systems  ( also containing Magneto that feeds the Stator in the generator) may be added to the  drive belt system
              ( rotational torque transfer of motion ) may also then be   by sprocket and or  drive chain assembly then also being then lubricated by non - flammable , non
             conductive ( electrically ) silicone oil.  This allows for an electric   vehicle that does not require a   storage battery as we have determined that the natural resource
             and cost of wide scale implementation of battery powered electric   vehicles will become cost prohibitive due   to the volume of advanced automotive products
             required to correct the environmental and economic conditions the we face   in the future. Just a note about adding the high voltage   production generator..a gradual
              increase of Stator / field coil intensity as then referenced by the rotational rate   of the system will be required...it's then a variable electricity   intensity  increase to the
              field coil ...with in the high tension generator.

*Note - Upon the opposite side of the High Voltage generator will also be places another pneumatic impeller connected to a 1:4 ratio gear set with the high side of the gearing
             ratio then rotating the generator assembly  system to then be fed the "gain" air pressure created by compressor / impeller wheel then connected to the drive pulley....
           The pneumatic impeller will allow for pneumatic   pressure to counteract the resistance produced when generating electricity and increase the rotational rate of the generator....
           The pneumatic flow rate into the generator 's pneumatic impeller will also then be regulated by  variable valve and the pneumatic impeller's case will allow for over
           pressure, pressure release via max pressure safety pressure relief valve ( flow then vents to open air   post "cooling" injection flow through the High voltage generator and
          or into the highest vacuum part of the cycle ie. propeller intake air.., via tube,  to draft the generator assembly forward...then also restricting the pneumatic feed flow
          from the pneumatic pressure   storage tanks... ) . The generator and electric drive motor must have open air vents to allow for the o3 (ozone, to escape  ..the o3 is not to
           mix with the flow cycle...

          The Pulley on the drive belt / drive chain side of the motor system in that rotates in tandem with the generator system is then of a larger diameter by 35 % than the rest
           of the pulley on the drive belt / drive chain side  of the motor system. The pulley / sprocket upon the compressor /impeller drive shaft then about 4" in diameter and the
         smaller sprocket / pulley on the dynamo is the 3" in diameter.

*Note - Forced "cold air" injection system  by refrigeration system may also augment the High Voltage generator
          allowing for greater  and higher levels of electricity production..also may reduce wear upon the generator itself.

* Note - To compensate for the "Baug" rate effect within the high  voltage generator when the electric motor connected to the transmission and drive shafts / wheels  is
             electrified, an additional electric motor will be then tandem within   the high voltage   generator and fed current from the high voltage generator to over compensate
             counteracting the slowing effect produced when electricity is demanded from the   generator by the electric motor / transmission assembly, ..this prevents the system from
             slowing down and also causes a "load re - active " generating system then being tilted...

* Note - From number 17 the pneumatic flow into number 22 that by passes number 9... then is causing a spiraling of pneumatic flow within number 22 to add
              to pressure and final rate of pneumatic   pressure velocity due to adhesion of pneumatic flow within number 22.
