Algae Bio Reactor Oil Tanker Catamaran


The following design is a "Catamaran" style vessel hull to add to the existing Oil Tanker fleets to then cause active production of hydrocarbon feed stock filling the oil tankers with oil (hydrocarbon feed stock) while in route to the off load destinations....


The design operates 24/7 then by artificial illumination (lamps) at night time. The "arch design" then containing bio reactor flow tubes to then cycle water containing Algae. The system's fuel less generator then able to pump the algae water, heat, and cool by fuel less electricity. The electricity then produced by the "hydraulic draft accelerator" generator system. The "fresh water" for the algae

bio reactor then obtained from de-humidification (cold side) of the system's H.V.A.C. unit (water temperature control system)


The on-board bio reactor then fills the oil tanker with oil while in transit or while docked.........


This design if used for fuel production can be made to become carbon neutral as the spent algae husk can be slightly burnt into char and sunk into the water where safe to do so......

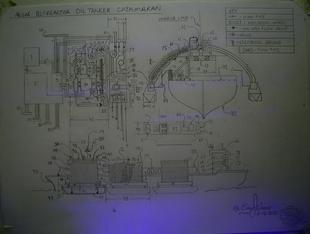

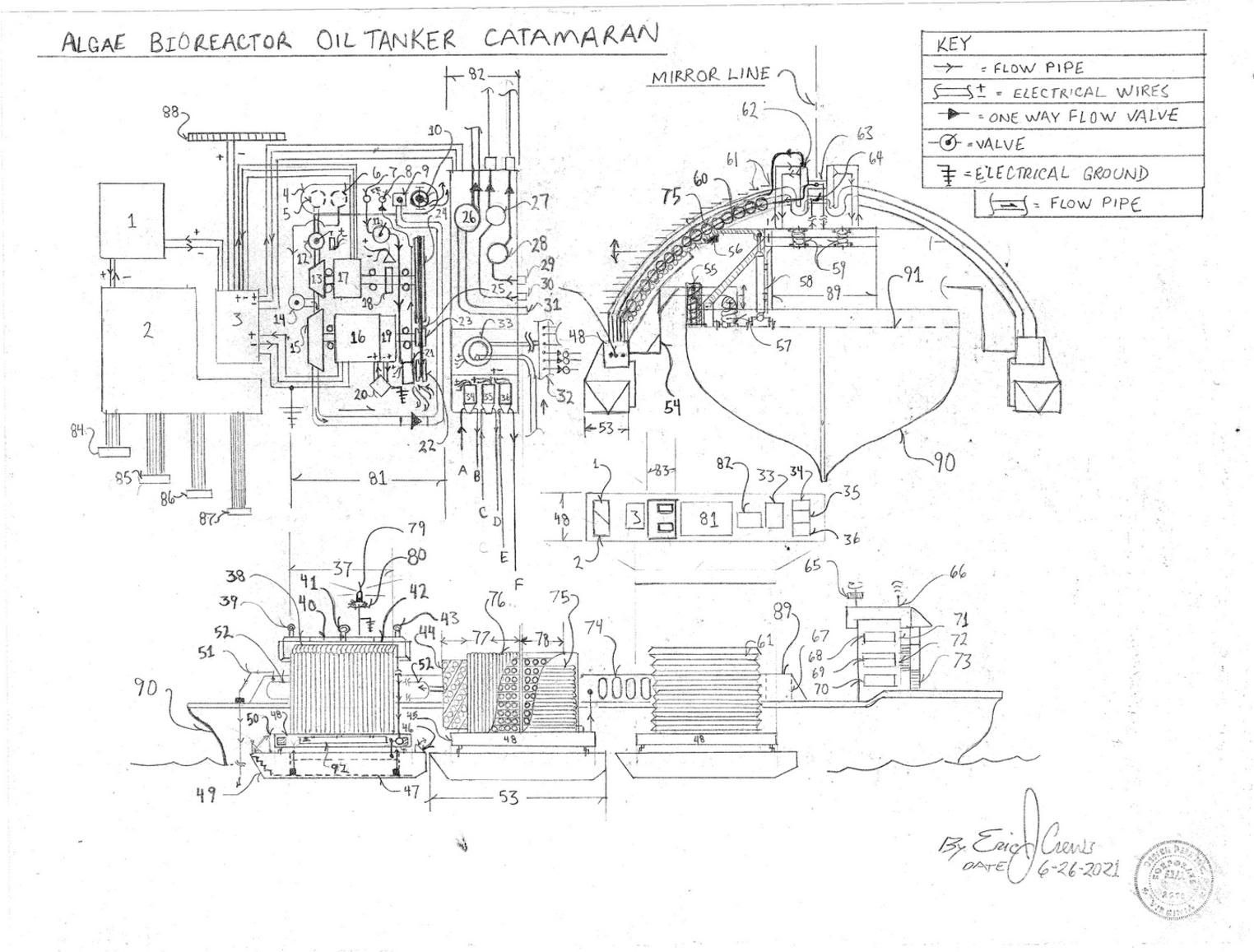

Parts List


1. electricity management control (voltage regulation , surge suppression, and transformers - feeds electrical current to the algae bio reactor

    lamp systems)


2. bio reactor lamp control system contains lamp timers


3. generator control electronic circuit "logic" box


4. dual component pressure tank air pressure atop silicone oil causing oil pressure (the silicone oil then acts as a hydraulic fluid)


5.  oil tank drain (under side)


6.  hydraulic draft impeller "by-pass" oil drain (under side) "maintains" / "limits" maximum rate of rotation for the total system


7. air pressure discharge compression pipe fitting


8. air pressure pressure pipe fitting ( - the system automatically re-fills the air pressure by the automatic actuation of the air compression

    air pump, number 21 when the oil air pressure electric sensor in number 10 determines, by electronic circuit, that the air pressure needs to

    be increased within the dual component pressure tank


9. hydraulic fluid / oil return housing - "contains" oil filter dampener type oil filter - the oil filter designed to allow high oil flow oil filter bypass


10. oil fill screw cap with max pressure venting safety valve and air pressure sensor. The cap is hard locked "retained" by compression metal

      safety bar that compresses the cap toward the oil tank


11. pneumatic "start valve" allows air pressure to travel to the dual function air compressor air impeller (piston type compressor / impeller) to

      cause system rotation allowing air pressure to open discharge to ambient external atmospheric air pressure


12. electronic circuit controlled main oil flow valve - allows pneumatically pressurized oil to travel to the oil pump with the hydraulic draft impeller

      before the oil pump in the flow cycle to then allow for speed increase of the total system by pulley and drive belt rotation rate incline

      using a smaller pulley upon the oil pump's drive line assembly


13. hydraulic draft impeller


14. oil flow system speed control dampener type hydraulic fluid / oil inlet valve - under excessive system speed the dampener valve opens

       to then allow oil flow to by-pass the hydraulic impeller ... this slows total system speed


15.  high speed hydraulic pump - causes the system to accelerate by fluid suction


16.  main high voltage generator


17. dual shaft electric motor


18. R.P.M. sensor (revolutions per minute sensor) - used to "regulate" / maintain system speed by electronic circuit


19. permanent magnet "Magneto" electricity generator to then electrify the main high voltage generator's field coil


20. high voltage generator filed coil voltage regulator


21. dual function air compressor air impeller air compressor/ pump contains electric actuation mechanical clutch so that the compressor

      is not required to "run" all of the time / increases longevity of the component - natural position engaged ... the clutch uses throw out slave

      to disengage and if required while in operation the electric system engages via an "engage solenoid" to then cause unit actuation

      air compression cycle). The inflow and out flow / "direction" of air flow then also controlled by solenoid upon the unit to then change direction

      of air compression or to switch the "function" of the unit to allow the "re-filling" of the dual component pressure storage tank.  The dual function

      air pump / air impeller is pivot mounted to "adjust" drive belt tension.


22. pulley 4" diameter ( dia.)


23. pulley 4" dia.


24.  large pulley 12" dia.


25.  drive belt


26.  main algae bio reactor water pump


27.  Carbon dioxide gas air pump


28.  air pump (dilutes the system produced Oxygen)


29.  air pump compression coupling from air filter and air filter "box"


30.  gas compression coupling from Amine air stripper system - the Amine system powered by fuel less electricity extracting carbon

       dioxide from atmospheric air


31.  bio reactor connection pipe fitting cycles both vertical arch and horizontal algae containing "clear tubes" made of a UvA, UvB and UvC light

       treated acrylic plastic


32. high water pressure "algae cracker" water jet manifold - cracks the algae within the actual bio reactor "tubes" to cause oil water separation

      at the top of the arch


33. high pressure water injection pump


34. fertilization feed pump


35. gas / air evacuation exhaust air pump (arch tubes) - day grow cycle


36. algae bio reactor oil extraction pump fills the oil tanker oil holding tanks or directs the harvested algae oil to the horizontal oil distillation system


37.  catamaran side view


38.  placement crane frame docking hoops - the frame of the catamaran can be attached to a crane - cargo container ship load unload over

       head crane system to then mount the catamaran upon the oil tanker


39.  crane hoop


40.  dual  load mounting frame- accounts for the system full of water in structural strength for safe mounting redundant strength capacity


41.  center crane hoop


42.  redundant frame


43. crane hoop


44. slide out photovoltaic solar panel - assist in water heating cooling


45. work lamp - vent ports


46. pontoon aft egress hatch


47.  ballast list control air / water tank system uses electric water air compression air pumps - uses salt water


48. generator pumping "bay" encasement - contains pontoon list control ballast pumping systems


49. pontoon internal stair case


50. water tight entry hatch


51. on-board horizontal oil distillation blow down tank safety decompression tube


52. on-board horizontal oil distillation blow down tank


53.  catamaran float pontoon


54.  catamaran to oil tanker hull mounting frame successive across the linear length of the algae bio reactor every 4' of the 40' reactor arch


55.  bio reactor structural frame strut shock absorption assembly


56. under side bio reactor "arch frame" mounting points bolts to the frame of the deck distillation enclosure housing metal frame and

      louver control system


57. bio reactor  structural frame hard coil spring shock absorption mounting assembly upon the ends and in the middle of the arch frame

      members that are placed every 4' - total of three hard spring systems ( upon each side to the catamaran) containing the strut assembly upon

      the same said arch frame members


58. vertical hydraulic piston system mounted to the vertical metal studs of the oil distillation enclosure to allow for the "jacking" of the arch

      catamaran to replace / repair worn components in the shock absorption system - the sum of 5 total hydraulic pistons along the length of

      the 40' algae bio reactor length. - note,  when jacking the arch, a pin detection sensor requires lock pin inserted to hard lock the arch by

      the insertion of metal pin of sufficient diameter to safely control the weight being lifted. The sensor "fault" inhibits the hydraulic jack

      system. The lock pin detector sensor then a magnetic switch sensor


59. center enclosure to arch frame hard coil shock absorption coil springs - sum of 11 along the length of the 40' (foot) algae bio reactor - note the

      vertical arch structural metal mounting frame also then having vertical travel capacity but locked to the oil tanker's deck by guide sleeve

      structural members upon each metal structural arch. The arch structural members are also horizontally locked by cross member structural

      metal members.


60.  algae oil extraction oil flow pipe


61. outer louver  photovoltaic sun shade - assist in electrical power supply for the oil distillation system electrical power requirement and or bio

      reactor functions


62.  algae bio reactor gas / air exhaust  system vent containing oxygen enriched air the diluted with the ambient air from the air pumping system


63. oil extraction horizontal cross pipe


64.  algae husk / sludge cross pipe auger pump system - removes the cracked husk / algae sludge from the reactor to then be directed to

       the oil distillation  enclosure where the husk are then spun in a centrifuge to separate the husk from the water that is then made available

       for re-introduction back into the algae bio reactor


65. oil tanker radar


66. communications antenna


67. oil distillation enclosure entry ( contains fire suppression and fire alarm system)


68. ship helm / bridge - three story stair case internal


69. ships quarters


70. galley


71. external entry


72. entry egress


73. external stair case


74.  horizontal oil distillation system - allows for distillates of the produced hydrocarbon feed stock to then yield different oils


75. night cycle algae bio reactor grow tubes


76. vertical "arch" bio reactor grow tubes


77. photovoltaic slide out solar panel electric assist motor allows for the arched solar panel to be easily moved upon a guide track


78. photovoltaic slide out solar panel length


79. maritime beacon lamp and lighting suppression halo (electrical ground safety system)


80. lighting halo


81.  draft accelerator electricity generator system within number 48


82.  system pumping unit


83. H.V.A.C. (heating ventilation air conditioning) unit assist in water heating and cooling as well as keeping the components in number 48 within

      their operating temperature zone


84. multi wire "bus" clip for the algae bio reactor night cycle lamp system


85. multi wire "bus" clip for the algae bio reactor night cycle lamp system


86. multi wire "bus" clip for the algae bio reactor night cycle lamp system


87. multi wire "bus" clip for the pontoon list control pumping systems - includes electrical wires for internal lighting and other functions

      contained within the pontoon float - weather encased marine grade umbilical wire sheath.


88. multi wire dock to "connect" all electrical system functions to the control electronic "logic" electronic circuit "box"


89. horizontal oil distillation enclosure hydraulic jack piston hydraulic pumping system location


90. oil tanker


91. ship deck


92.  access hatch


-note - vertical arch and horizontal tube system's are connected to allow for the continual flow of water containing algae producing oil 24 hours a day


Description


The above design system is then an addition to existing oil tankers to produce algae derived oil while the oil tanker is in transit. The oil tanker is also equipped with a "horizontal oil distillation system to then "refine" the algae oil into other hydrocarbon feed stock for fuel, plastics etc...


The generator system is a "hydraulic draft accelerator" then producing fuel less electrical current by pressurizing a "tilt" within the mechanics of the oil flow system with the advancement rate obtained in two fashions. First the high speed oil pump then causes total system advancement by "pulling" the pneumatically pressurized oil across a preceding hydraulic impeller connected to and incline gear system yielding higher speed of the hydraulic pump. You cannot "stretch" a fluid in the confinement of a rigid flow pipe. The "retained" air pressure in the dual component pressure tank, number 4, then of sufficient "pressure" to counter act upon / nullify, the mechanical and electromagnetic resistance produced within the generator system. This "cycles" work potential allowing for continual operation.....


The attribute in fluid dynamics causes the "suction effect" to accelerate the system by fluid dynamics. The second way the system accelerates is then by the "re-introduction" circuit ie .... "then being" a percentile of generated electricity directed back to the hydraulic impeller's drive line assembly dual shaft electric motor. This causes a stable rate of total system rotation governed by the design's electronic circuit board that references the design's sensors and rate of rotation producing excess electricity to then electrify the total system functions.


* Note - the design may also be used slightly modified to then serve as a plankton farm increasing food availability for aquatic life while sinking

              the water saturated CO2 (carbon dioxide) thus reducing oceanic Anoxic conditions.....


* Note - the side view of the bio reactors in the drafting are then all containing the same components in each catamaran


* Note - the generator's oil flow control valves are coil spring retained to the closed position and implement electric actuation with a

             redundant "all stop" solenoid upon the main oil flow pipe valve, number 12










*
