Transport Engine System


Currently in the wold lunch travels up to 1500 miles using oil as the prime mover for transportation. This causes the price of food to escalate also is hard for the supply demand chain including financial factors in the manufacturing process regarding the energy then required for the production of commodities. In the digital age with a point of sale as the computer we have also sped up commerce then requiring more long distance shipping of the products purchased online. The reduction of the cost of transportation will then stable the system....


The following engine design is intended for long range transport trucks  and  for international shipping via electric cargo container ships as well as the prime generation system for aircraft ( design within a Faraday cage) to  then also reduce the CO2 problem and fuel resource availability problem that has led the world to violence over natural resource.  Mankind has injured itself over what it did not even need...


The alternative is below...

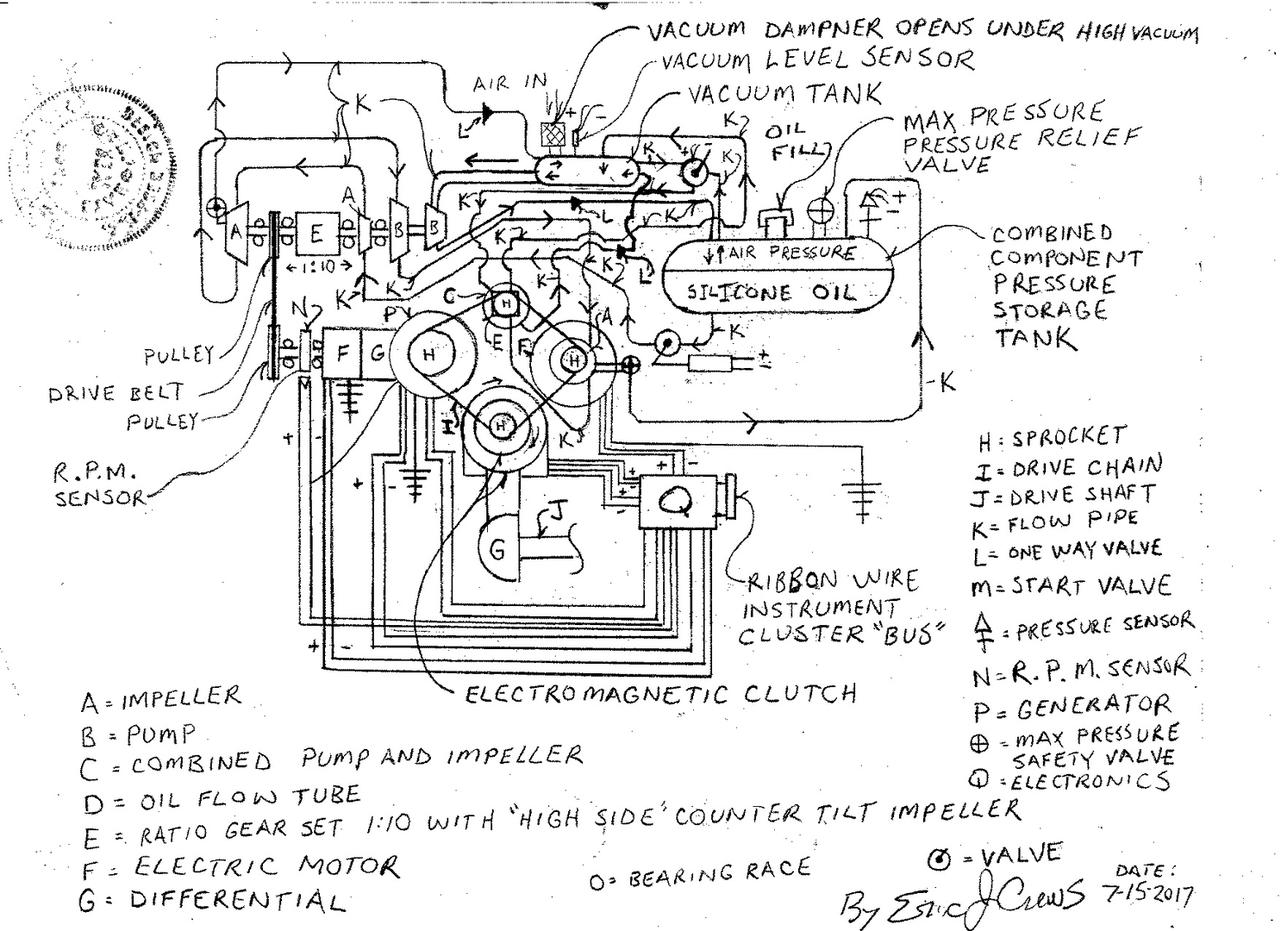

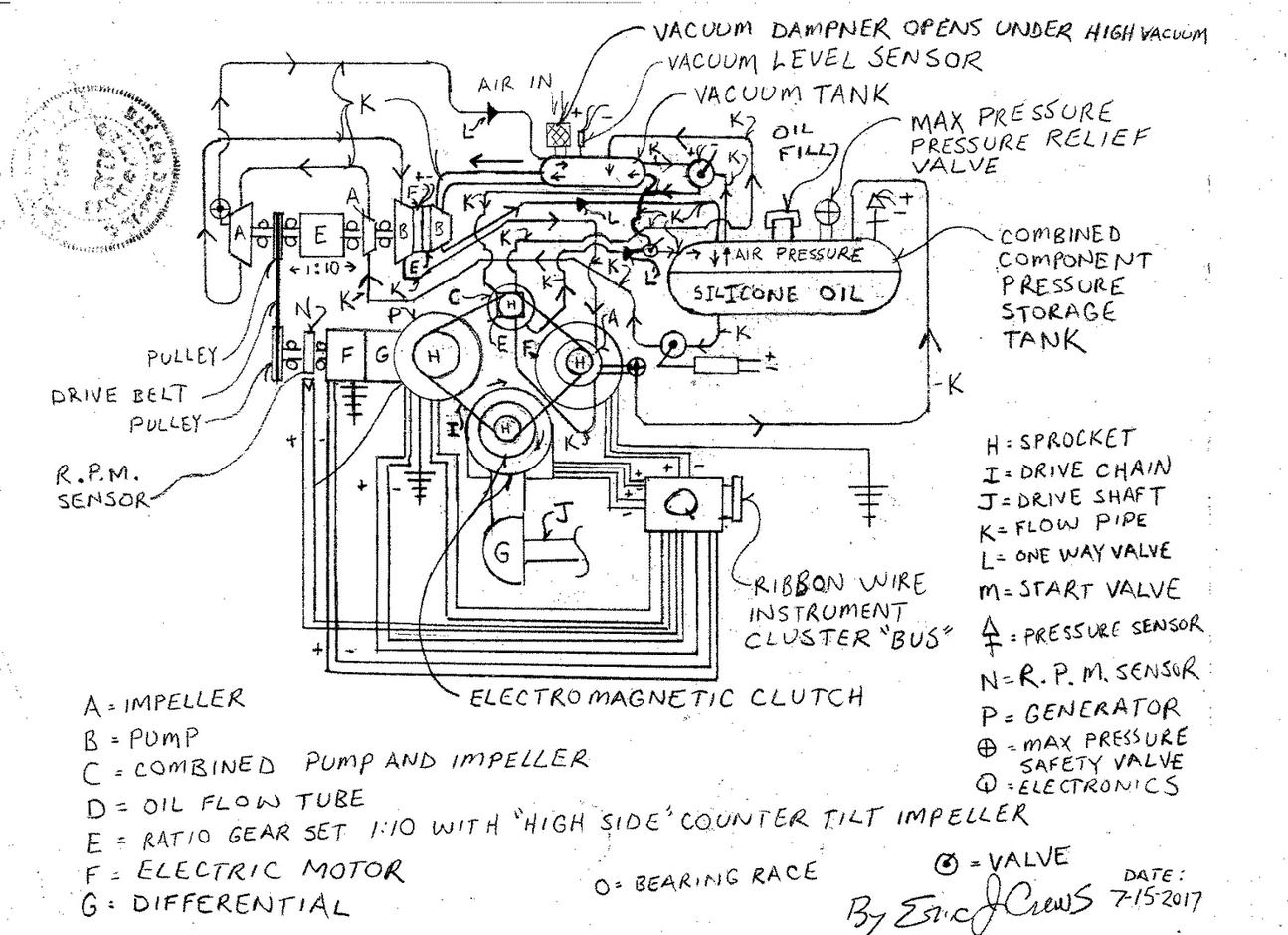

The sprocket and drive chain system then will be within a casing that allows for venting, lubricated by gear oil suitable for the environmental temperature conditions...


The electromagnetic clutch then containing thru bore electricity transference slip rings with redundant systems. This the output drive shaft letter may then bolt to a flywheel and automatic automotive transmission system.


The systems logic / systems mapping then within letter "Q" with the instrumentation and throttle controls then via the ribbon wire to the potentiometer foot pedal throttle...systems gauges also transfer info via the ribbon wire "bus" connector to the dashboard gauges.































The gear set  ( letter "E"), then upon the pump system pulling from the vacuum tank is then a 1:10 ratio gear set with the high side of the ratio then tandem rotating with the pump letter "B". The  component letter "F" then assisting in the said pumps rotation and is a high speed electric motor.
