Fuel Less Automobile
Parts List
1. small sprocket
2. large sprocket
3. chain
4. tension sprocket
5. oiled chain case
6. oil fill
7. large sprocket
8. oil pump
9. 1:10 ratio gear set and electromagnetic clutch within the gear set drive line.
10. brushes and brush track
11. armature
12. primary generator fixed field coil
13. commutator
14. 1:4 ratio gear set
15. oiled chain case
16. high voltage generator permanent magnetic
17. electric motor
18. r.p.m. sensor "hall effect"
19. high voltage generator permanent magnetic
20. battery charger
21. battery tank
22. mapping control computer
23. transmission
24. electric motor
25. adjustable for chain tension torque transfer shaft

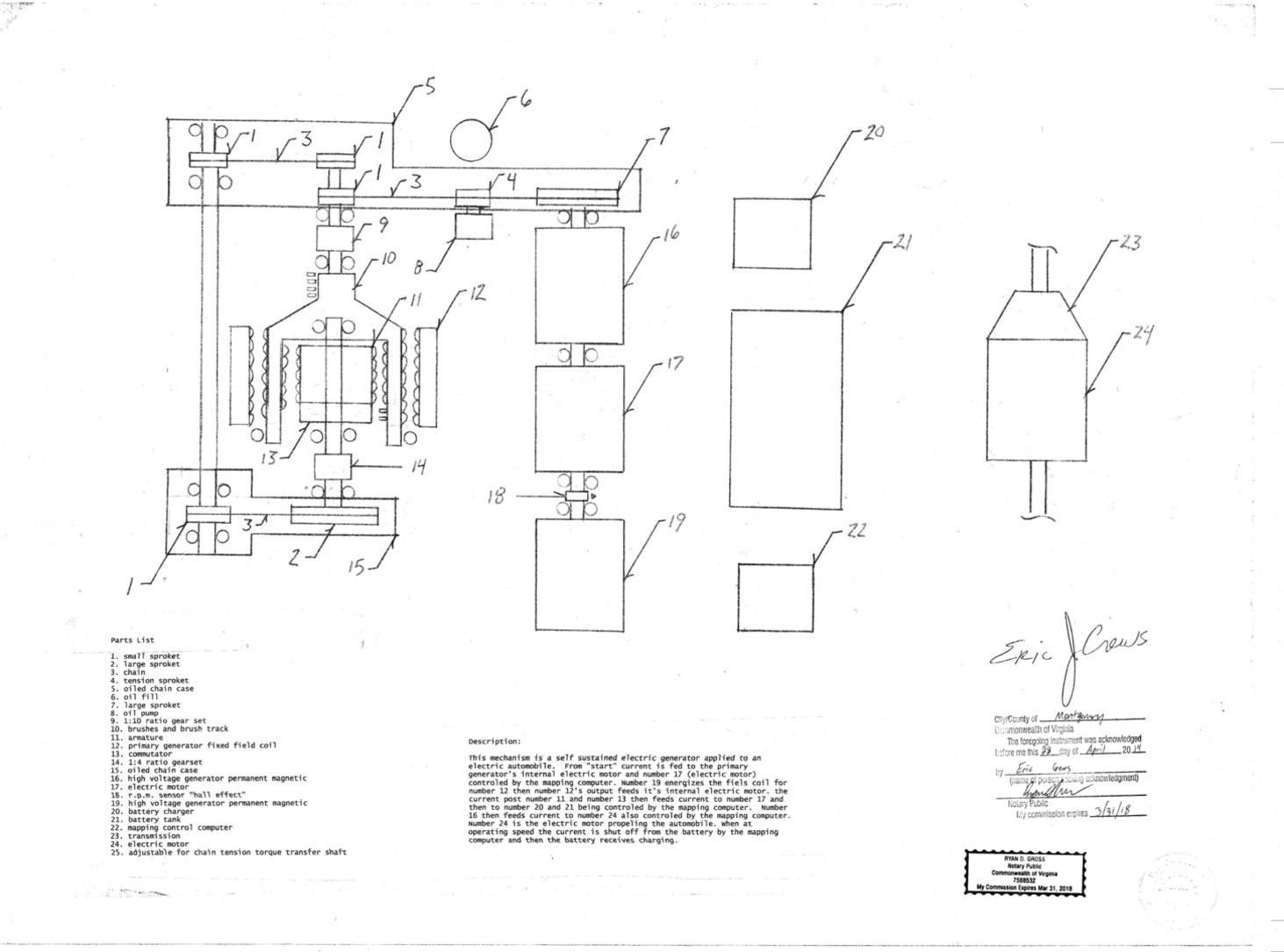

Description:
This mechanism is a self sustained electric generator applied to an electric automobile. From "start" current is fed to the primary generator's internal electric motor and number 17 (electric motor) controlled by the mapping computer. Number 19 energizes the field coil for number 12 then number 12's output feeds it's internal electric motor. the current post number 11 and number 13 then feeds current to number 17 and then to number 20 and 21 being controlled by the mapping computer. Number 16 then feeds current to number 24 also controlled by the mapping computer. Number 24 is the electric motor propelling the automobile. When at operating speed the current is shut off from the battery by the mapping computer and then the battery receives charging.
